Brush Cutter
BACK

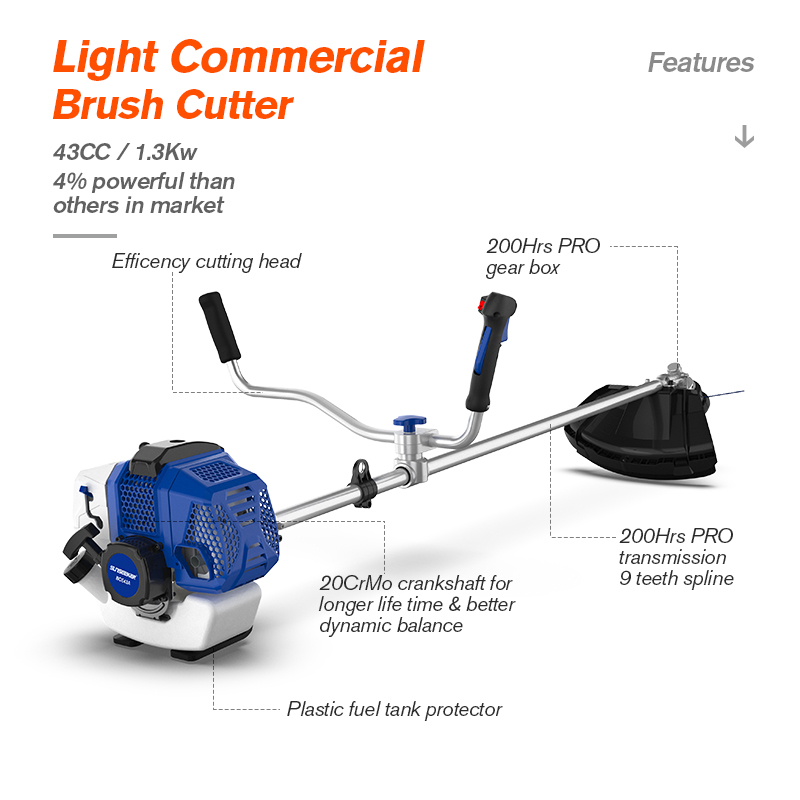

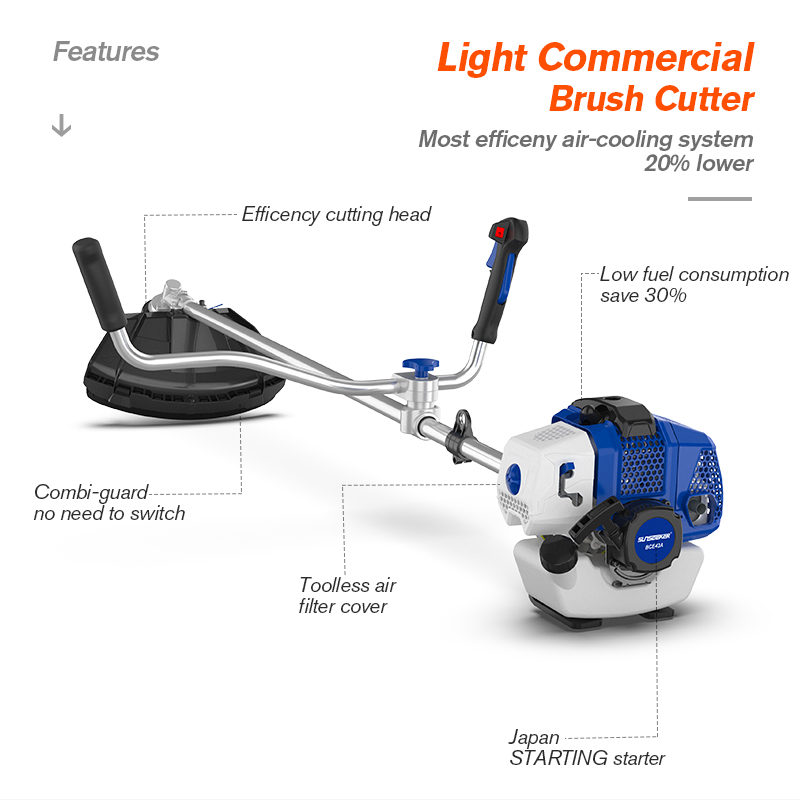

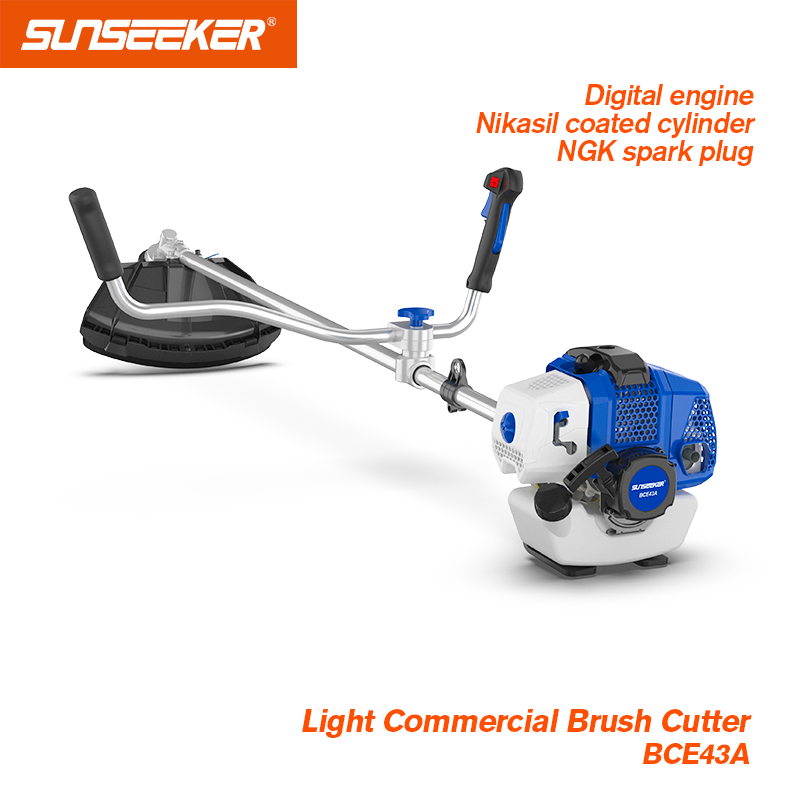

BCE43A
GRASS TRIMMER & BRUSH CUTTER


FEATURES

●43CC/1.4kW, 12% higher than the power of the same displacement on the market.

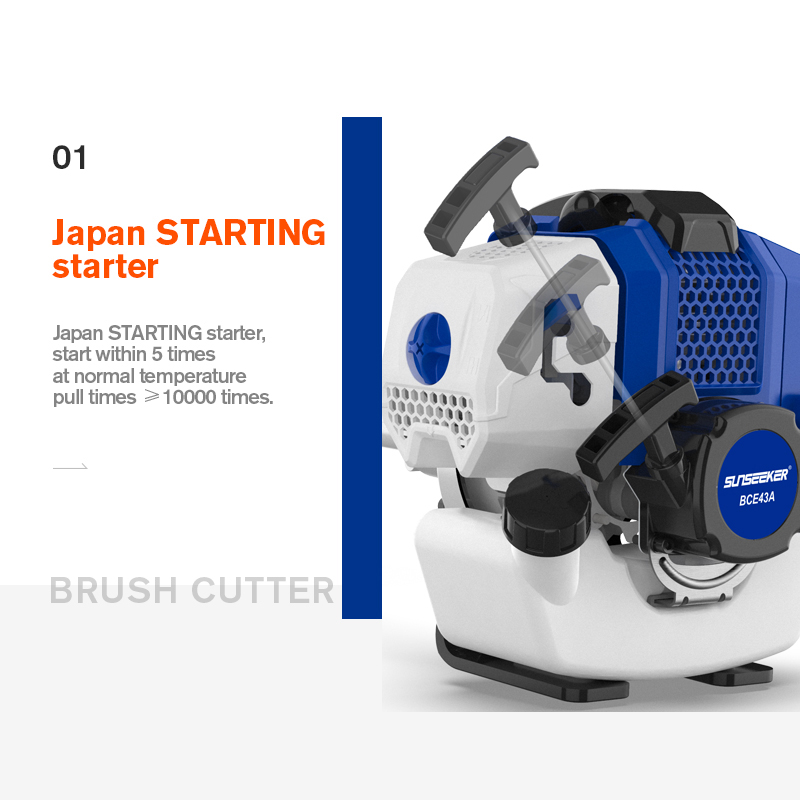

● Japan Xingtianju easy starter, start within 5 times at room temperature, start durability ≥ 10000 times.

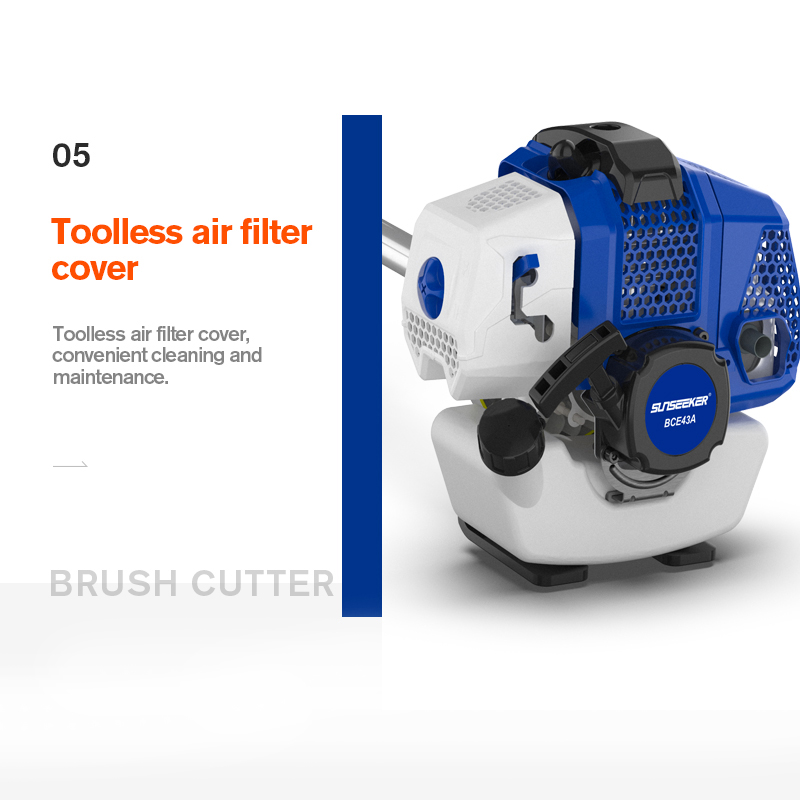

● Tool-free air filter, easy to clean and maintain.

● U-shaped overall handle, ergonomic, easy to install and operate.

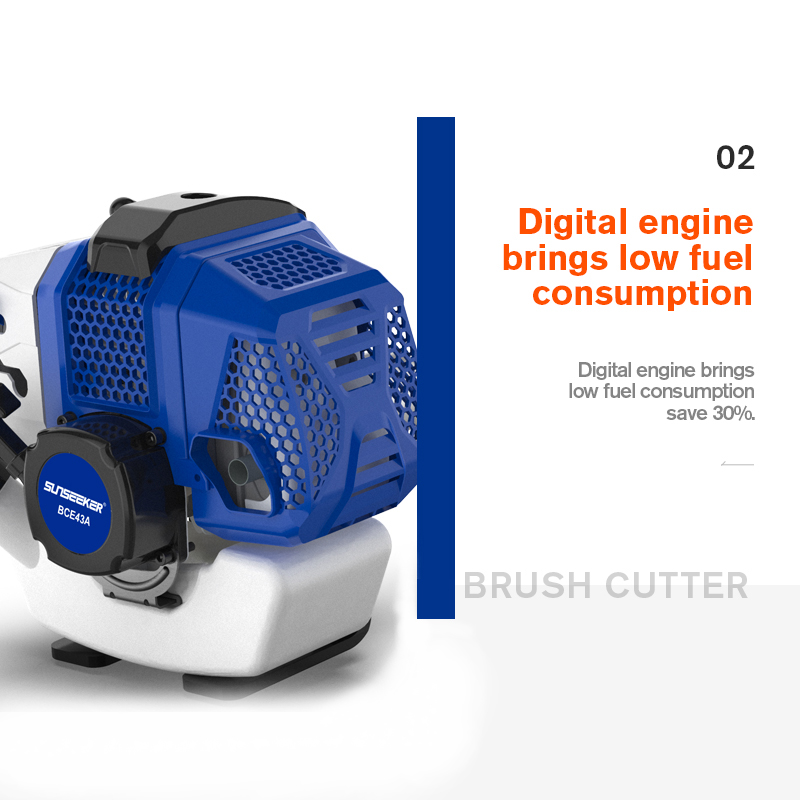

●Low fuel consumption, saving 30%.

●The fuel mixture ratio is 40:1.

●200 hours professional hard shaft, φ8x1495, 9-tooth spline at both ends.

●a straight rod, 28mm in diameter, stronger.

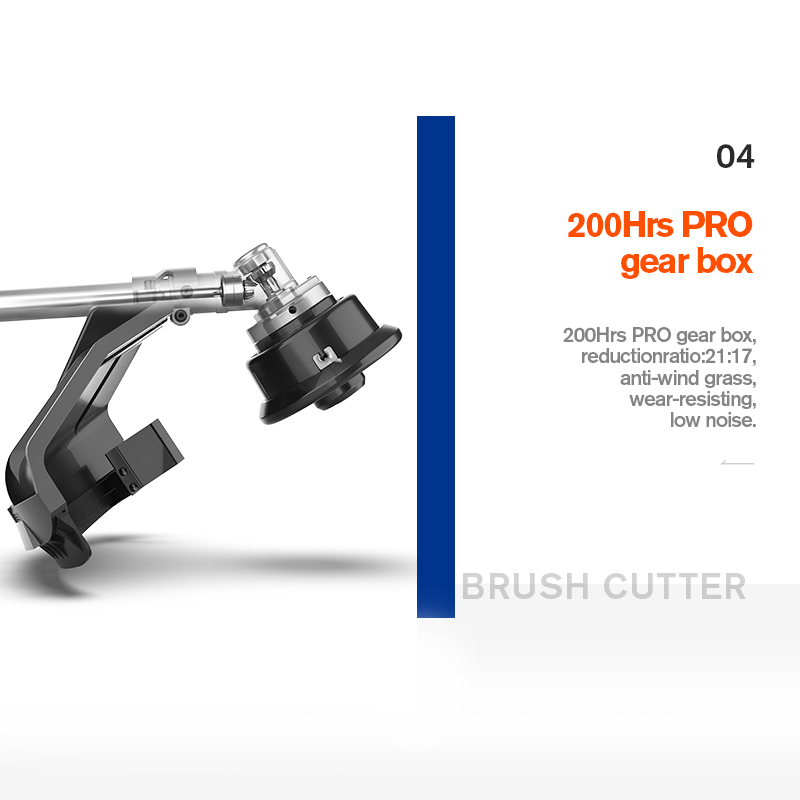

●200 hours professional gear box, reduction ratio: 21:17, gear box anti-wrapping, wear-resistant, low noise.

● Mowing heads, blades, clearing saws are available to meet different working environments.


SPECIFICATIONS

TECHINICAL SPECIFICATIONS

2-Stroke,Air-cooling Gasoline Engine
Displacement42.7cc42.7cc42.7cc42.7cc
Rated power1.1kw1.1kw1.1kw1.1kw
Maximum rpm engine11000rpm11000rpm11000rpm11000rpm
Maximum rpm output shaft7800rpm7800rpm7800rpm7800rpm
Gear ratio19 : 1419 : 1419 : 1419 : 14
Fuel tank capacity1000ml1000ml1000ml1000ml
Transmission shaft diameter26mm/28mm26mm/28mm26mm26mm
Lubricant ratio1 : 401 : 401 : 401 : 40
Cutting capacity(blade)255mm255mm255mm255mm
Cutting capacity(trmmer head)430mm430mm430mm430mm
Nylon line diameter2.4mm2.4mm2.4mm2.4mm
 HandleBikeBikeLoopLoop
Transmission shaft
JointIntegralJointIntegral
Standard hamessDoubleDoubleDoubleDouble
