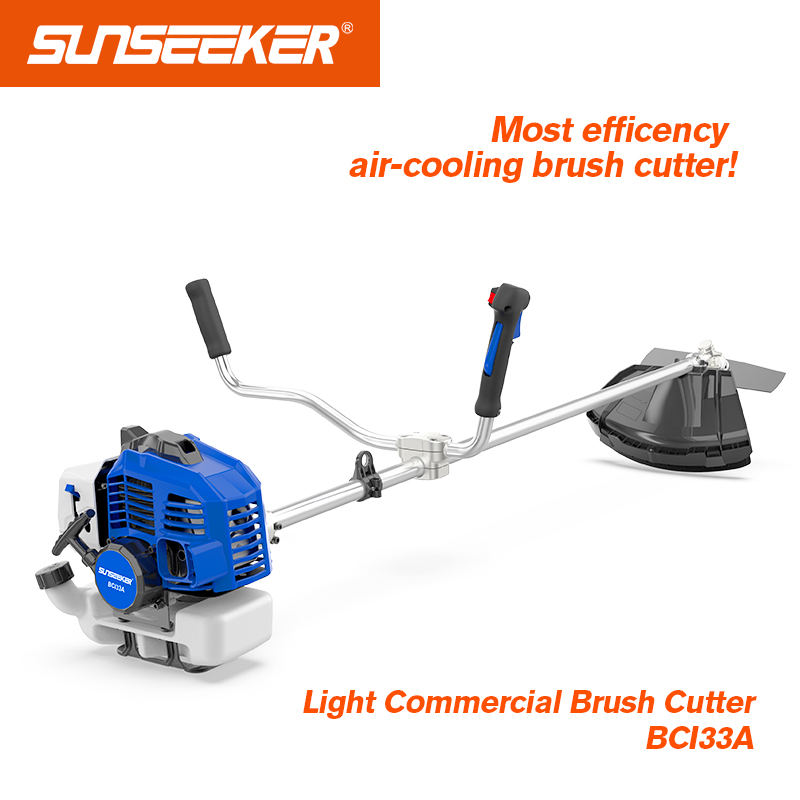

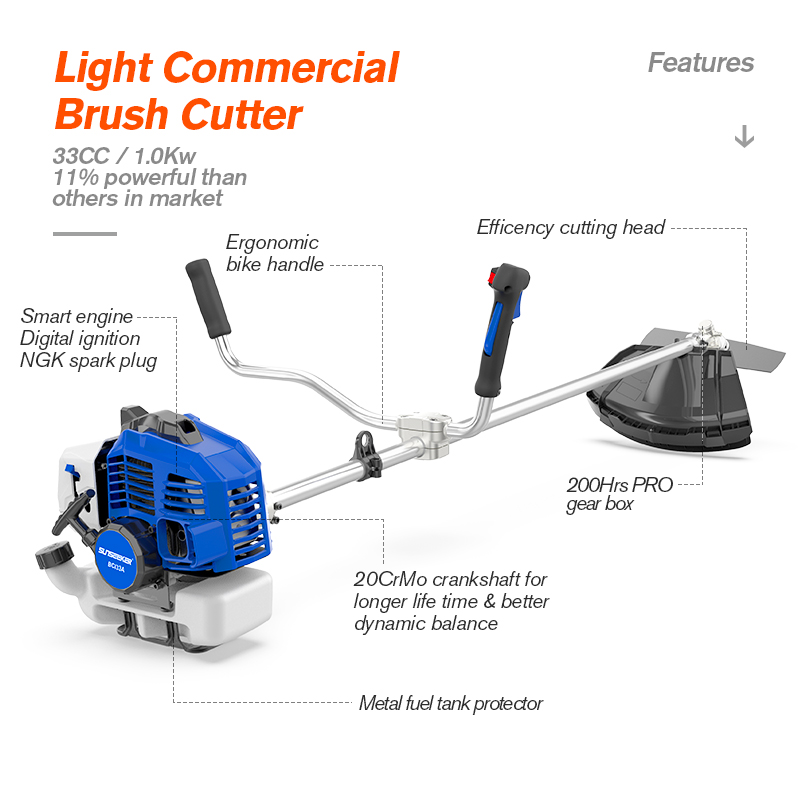

BCI33A
GRASS TRIMMER & BRUSH CUTTER

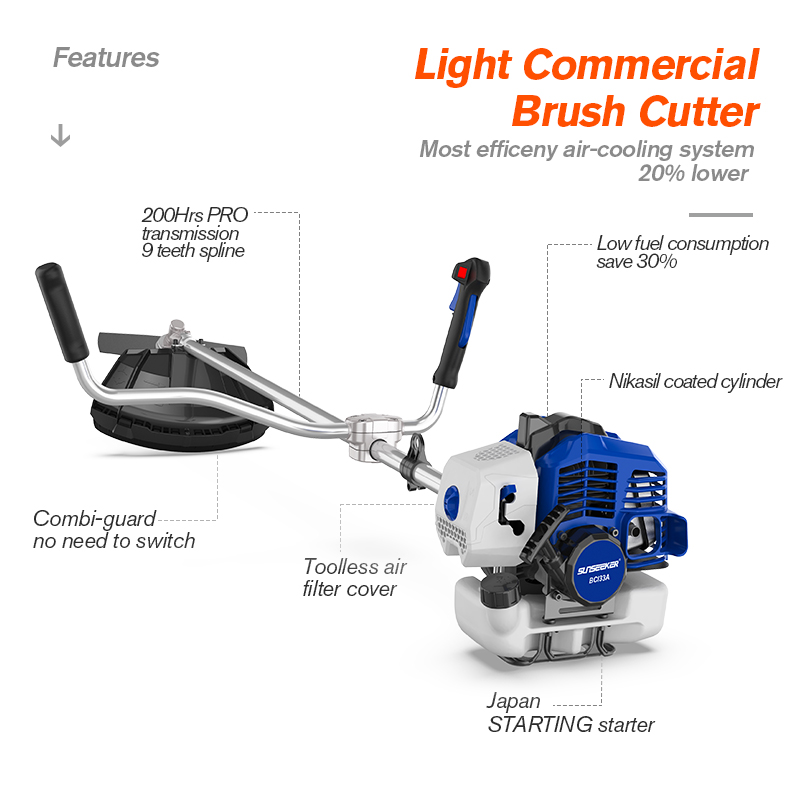

FEATURES

●33CC/1.0kW, 11% higher than the power of the same displacement on the market.

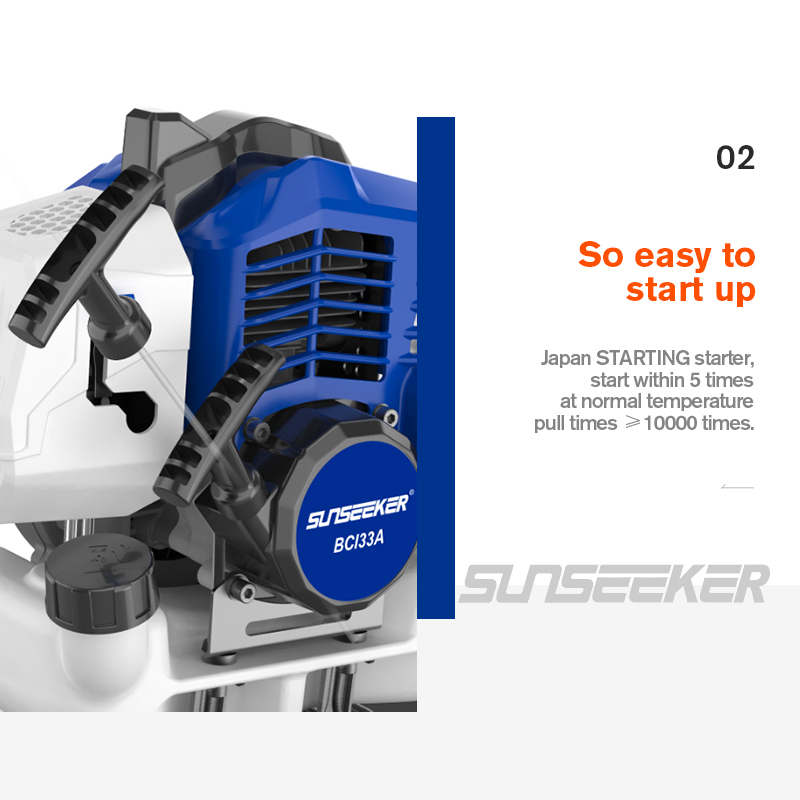

● Japan Xingtianju easy starter, start within 5 times at room temperature, start durability ≥ 10000 times.

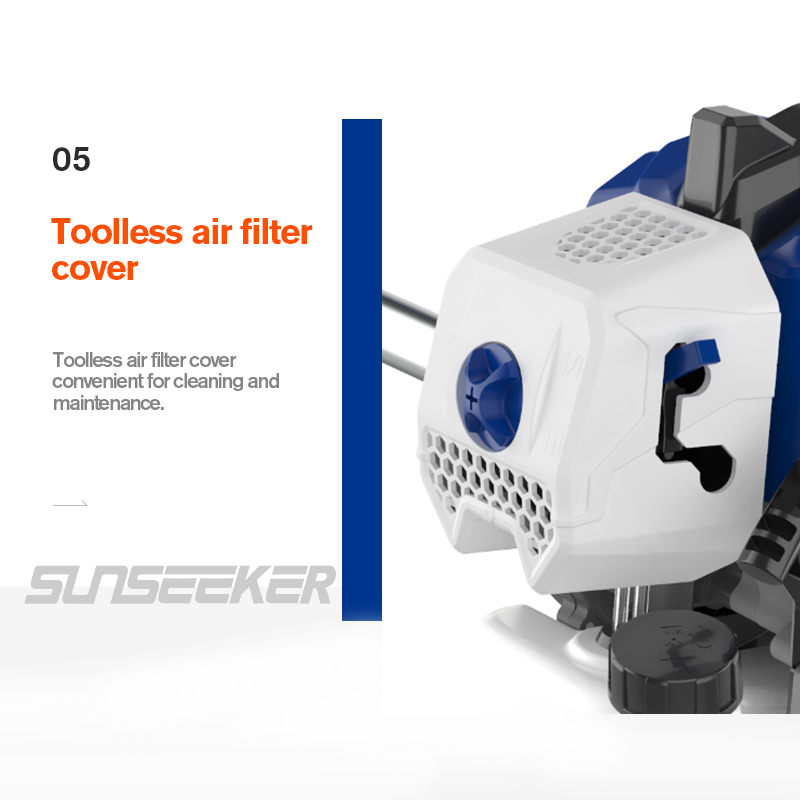

● Tool-free air filter, easy to clean and maintain.

● U-shaped overall handle, ergonomic, easy to install and operate.

● Low fuel consumption, saving 30%.

●The fuel mixture ratio is 40:1.

● 200 hours professional hard shaft, φ8x1495, 9-tooth spline at both ends.

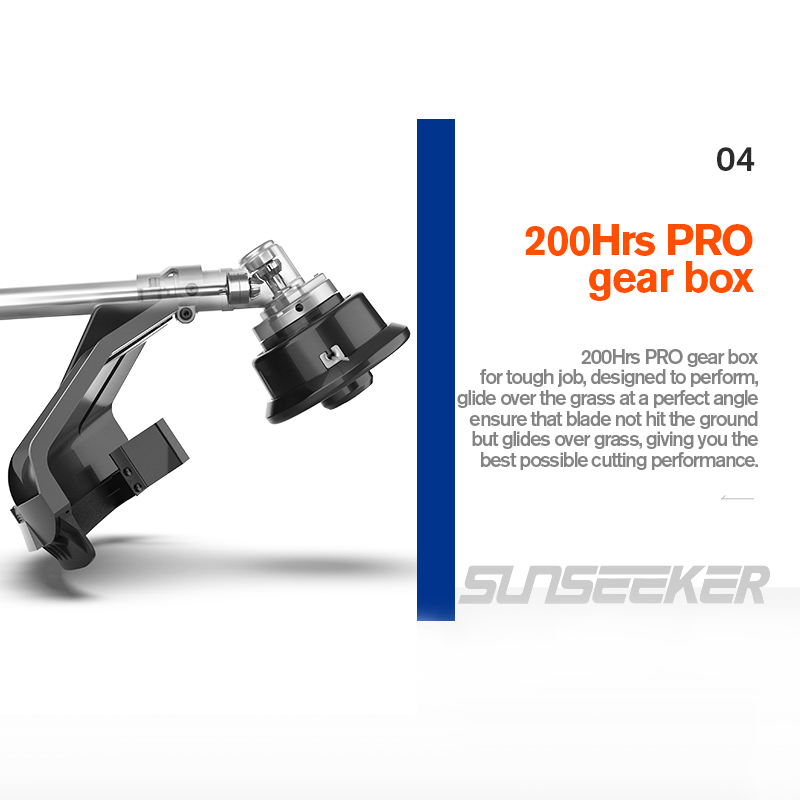

● 200 hours professional gear box, reduction ratio: 21:17, gear box anti-wrapping, wear-resistant, low noise.

● Mowing heads, blades, clearing saws are available to meet different working environments.


SPECIFICATIONS

TECHINICAL SPECIFICATIONS

2-Stroke,Air-cooling Gasoline Engine
Displacement32.6cc32.6cc
Rated power0.9kw0.9kw
Maximum rpm engine9800rpm9800rpm
Maximum rpm output shaft7500rpm7500rpm
Gear ratio19 : 1419 : 14
Fuel tank capacity900ml900ml
Transmission shaft diameter26mm/28mm26mm/28mm
Lubricant ratio1 : 401 : 40
Cutting capacity(blade)255mm255mm
Cutting capacity(trmmer head)430mm430mm
Nylon line diameter2.4mm2.4mm
 HandleBikeBike
Transmission shaft
JointIntegral
Standard hamessSingleSingle
