Brush Cutter
BACK

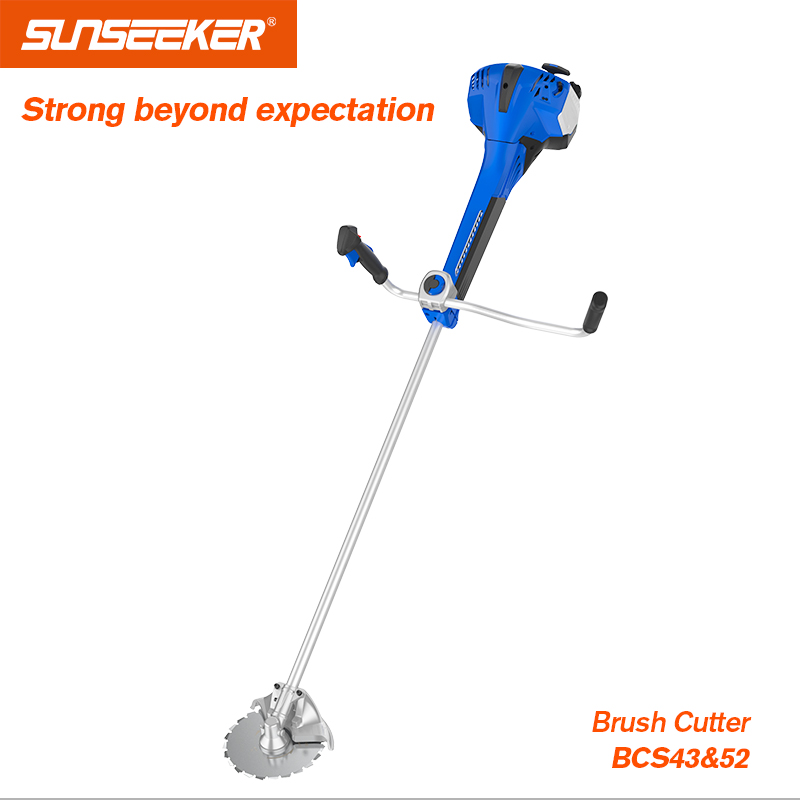

BCS43 & BCS52
GRASS TRIMMER & BRUSH CUTTER

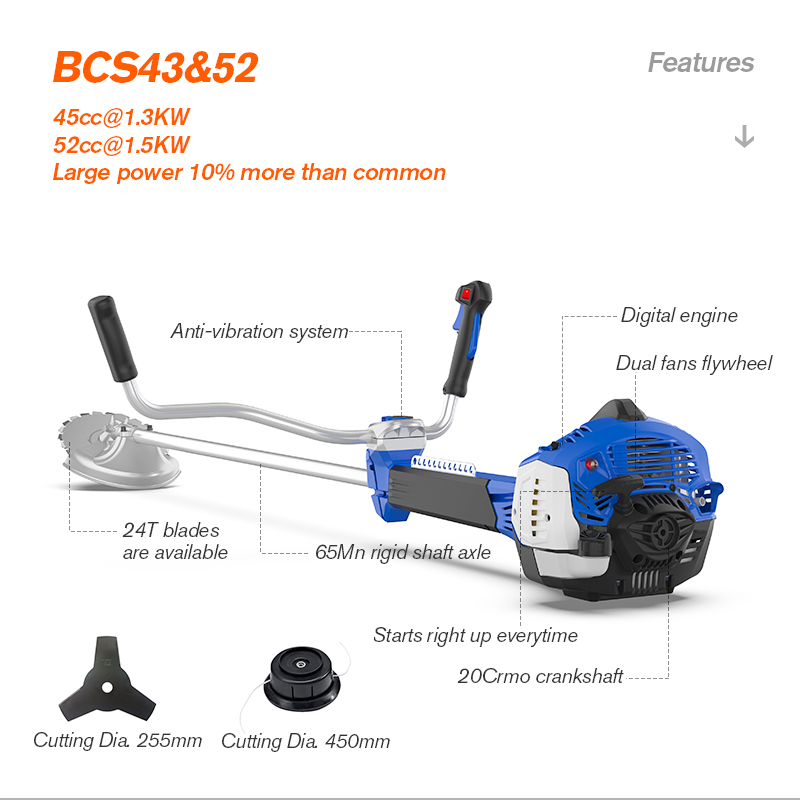

FEATURES

●The power is 45cc@1.3KW, 52cc@1.5KW, which is 10% more than ordinary machines with the same displacement.

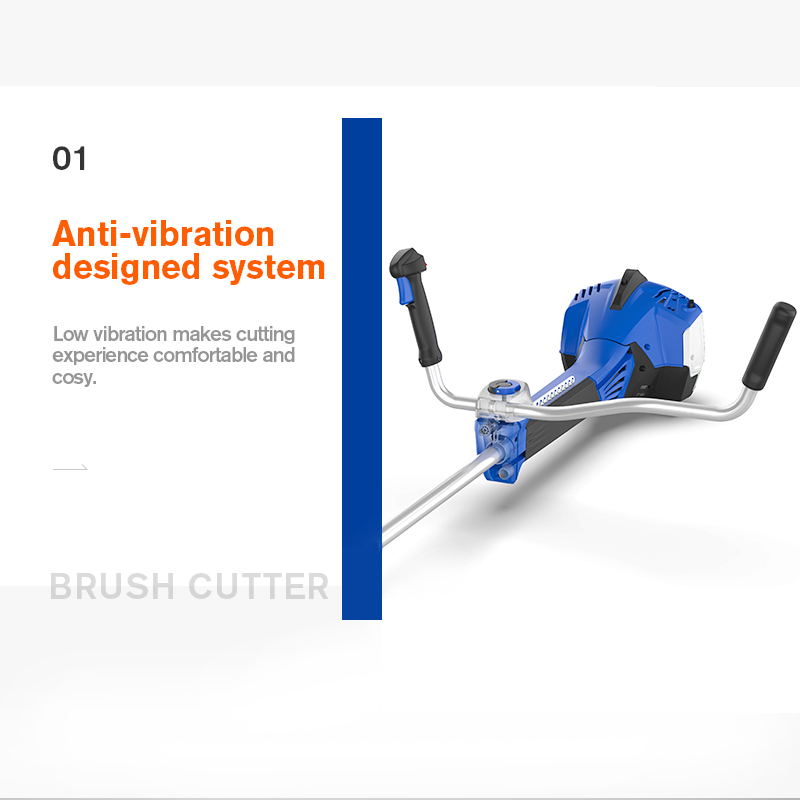

● Shock absorption handle design, less vibration, more comfortable。

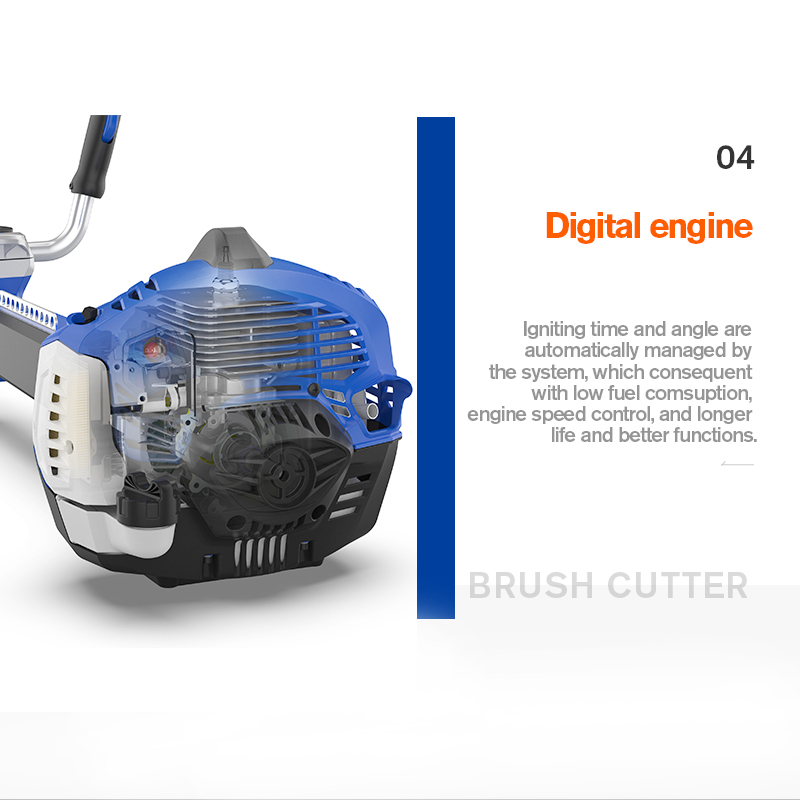

● The electronic ignition system controls the ignition time and angle to improve engine life and performance.

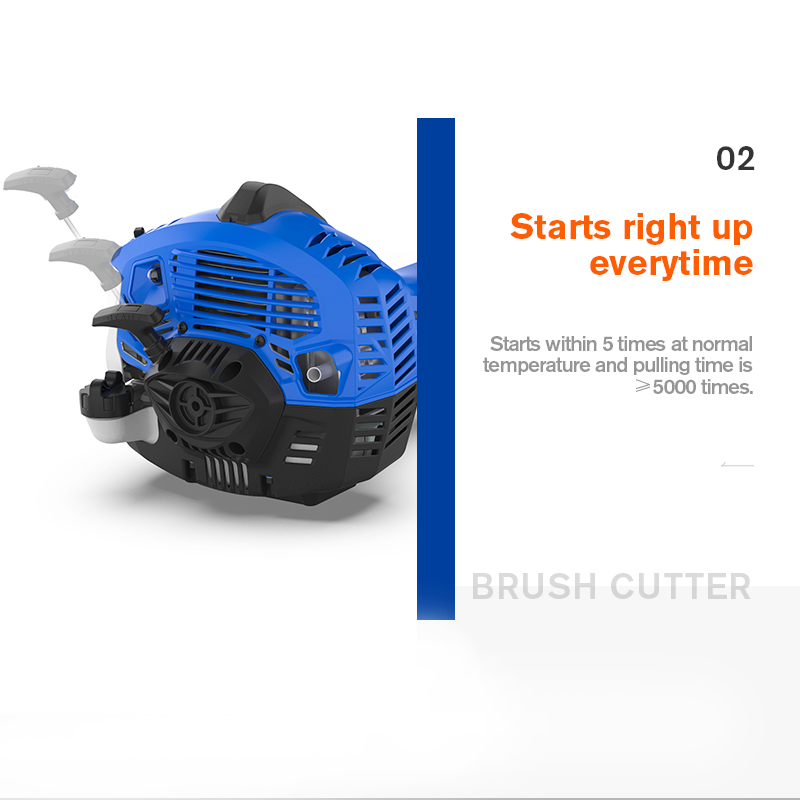

● Easy starter, easy to start.

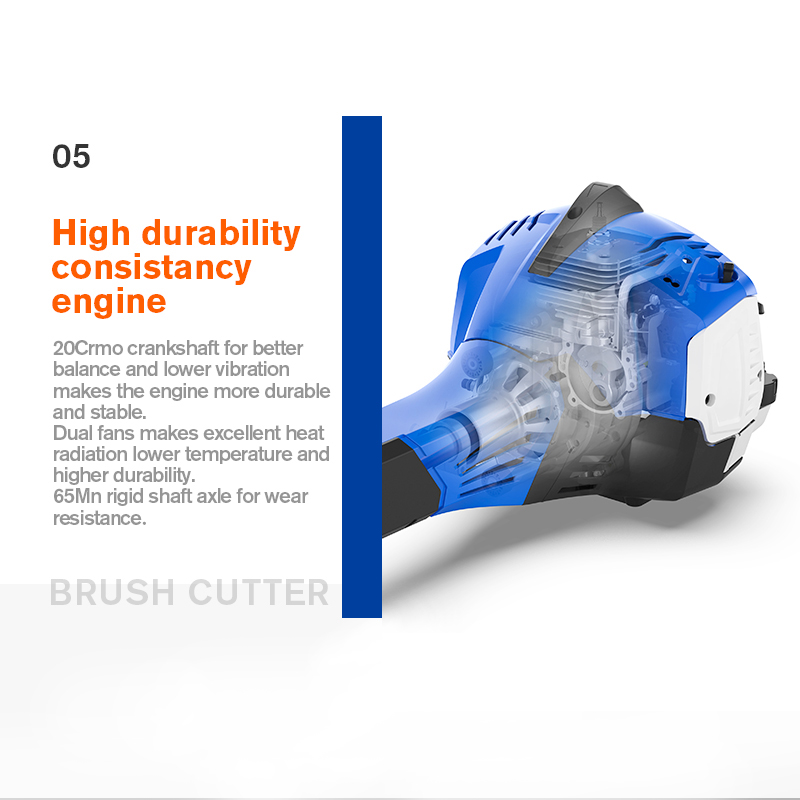

● The 20Crmo crankshaft is wear-resistant and more durable.

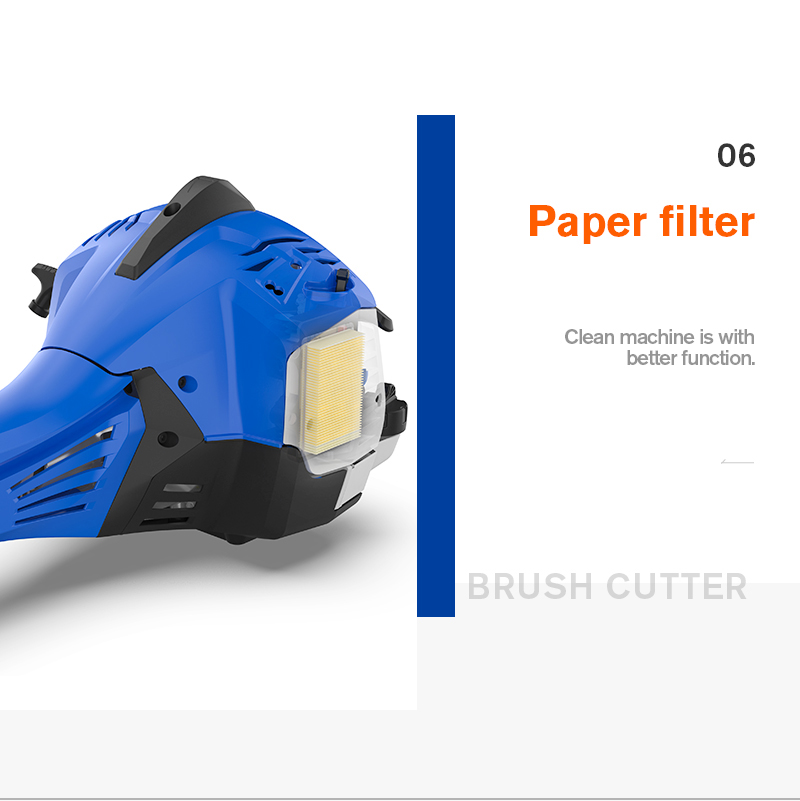

● Paper filter element: better filtering effect, making the mixed oil and gas cleaner.

●.65Mn hard shaft, higher hardness and more wear resistance.

● Double fan blade magnetic flywheel, good heat dissipation effect, longer machine performance and life.

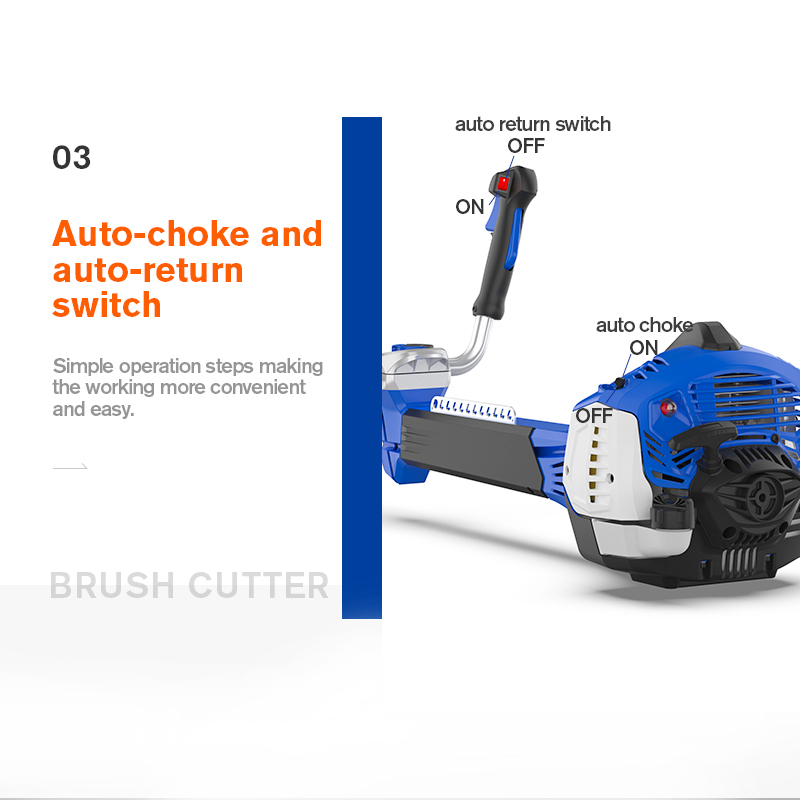

●Air door linkage carburetor + automatic reset flameout switch


SPECIFICATIONS

BCS-43 TECHINICAL SPECIFICATIONS

2-Stroke,Air-cooling Gasoline Engine
Displacement42.7cc42.7cc42.7cc
Rated power1.3kw1.3kw1.3kw
Maximum rpm engine11000rpm11000rpm11000rpm
Maximum rpm output shaft7800rpm7800rpm7800rpm
Gear ratio21 : 1721 : 1721 : 17
Fuel tank capacity1000ml1000ml1000ml
Transmission shaft diameter26mm/28mm26mm/28mm26mm/28mm
Lubricant ratio1 : 401 : 401 : 40
Cutting capacity(blade)255mm255mm255mm
Cutting capacity(trmmer head)450mm450mm450mm
Nylon line diameter2.8mm2.8mm2.8mm
 HandleBikeBikeLoop
Transmission shaft
IntegralIntegralIntegral
Standard hamessDoubleDoubleDouble

BCS-52 TECHINICAL SPECIFICATIONS

2-Stroke,Air-cooling Gasoline Engine
Displacement51.7cc51.7cc51.7cc
Rated power1.5kw1.5kw1.5kw
Maximum rpm engine11000rpm11000rpm11000rpm
Maximum rpm output shaft7800rpm7800rpm7800rpm
Gear ratio21 : 1721 : 1721 : 17
Fuel tank capacity1000ml1000ml1000ml
Transmission shaft diameter26mm/28mm26mm/28mm26mm/28mm
Lubricant ratio1 : 401 : 401 : 40
Cutting capacity(blade)255mm255mm255mm
Cutting capacity(trmmer head)450mm450mm450mm
Nylon line diameter2.8mm2.8mm2.8mm
 HandleLoopBikeBike
Transmission shaft
IntegralIntegralIntegral
Standard hamessDoubleDoubleDouble
